Sun Fasteners are known for manufacturing of the best quality and highly reliable Threaded Rods and Thread Bars.

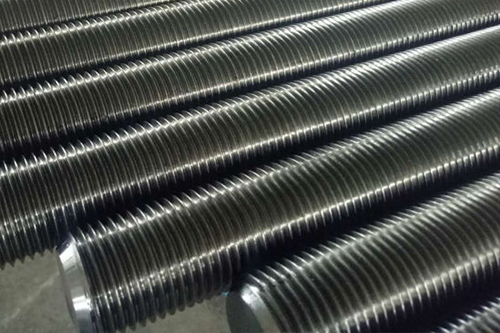

Our Rolled Threads and threaded rods are available with superior strength, finish and dimensional integrity with accurate lead tolerances. All the major thread forms are rolled: Unified, UNJ, Metric threaded rods, Acme threaded rods, mild steel threaded rods, ms threaded rods etc.

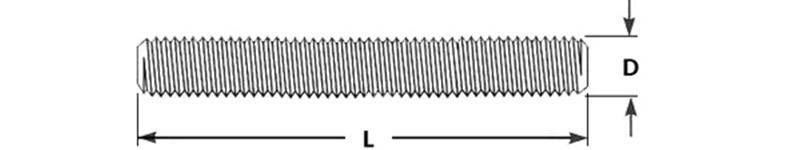

| Rod Dimension (MM) | Minimum Weight/ Meter (KG) |
|---|---|
| M 4 | 0,072 |
| M 5 | 0,113 |
| M 6 | 0,167 |
| M 8 | 0,30 |
| M 10 | 0,47 |
| M 12 | 0,69 |
| M 14 | 0,93 |
| M 16 | 1,24 |
| M 18 | 1,57 |
| M 20 | 1,98 |
| M 22 | 2,44 |
| M 24 | 2,86 |
| M 27 | 3,58 |
| M 30 | 4,54 |
| M 33 | 5,61 |
| M 36 | 6,63 |
| M 39 | 7,86 |
| M 42 | 9,05 |
| M 45 | 10,51 |
| M 48 | 11,84 |
| M 52 | 14,13 |
| Rod Dimension (INCH) | Minimum Weight (LBS) |
|---|---|
| 1/4 -20 UNC | 0.122 |
| 5/16-18 UNC | 0.199 |
| 3/8-16 UNC | 0.293 |
| 7/16-14 UNC | 0.402 |
| 1/2 -13 UNC | 0.533 |
| 5/8-11 UNC | 0.843 |
| 3/4 -10 UNC | 1.235 |
| 7/8-9 UNC | 1.705 |
| 1-8 UNC | 2.231 |
| 1 1/8-7 UNC | 2.811 |
| 1 1/4- 7 UNC | 3.537 |
| 1 3/8 -6 UNC | 4.232 |
| 1 1/2 -6 UNC | 5.122 |
| 1 3/4-5 UNC | 6.947 |
| 2-4 1/2 UNC | 9.118 |
